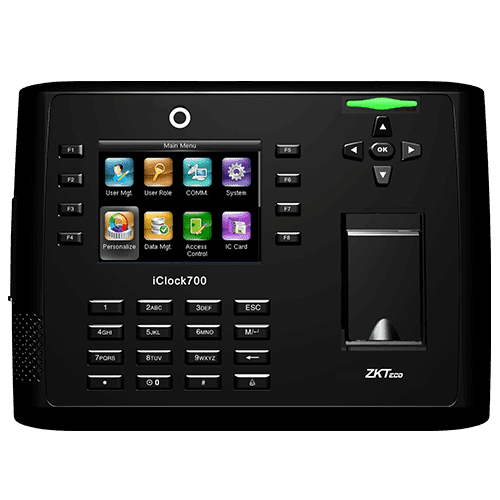

iClock700 fingerprint device is a 3.5-inch TFT screen Time & Attendance and Access Control Terminal. With the new user-friendly firmware, iClock700 is equipped with features like stunning GUI, more stability, faster matching speed and better expandability.
iClock700 is compatible with various types of USB flash disks, ADMS and former SDK. Moreover, RS232/485, TCP/IP, and USB client ensures a smooth date transmission between device and PC. It also has Wi-Fi and 3G connectivity and access control connectivity with Wiegand out and in, electric lock, door sensor, exit button, alarm and door bell.

Categories ,

Features

  1. Data backup and retrieval
  2. Multi language
  3. Intuitive and stunning UI
  4. Advanced User ID consisting of letters and numbers

    Parameter



    Fingerprint Capacity 8,000
    Card Capacity 10,000 (Optional)
    Record Capacity 200,000
    Display 3.5-inch TFT Screen
    Communication RS232/485, TCP/IP, USB-host/client
    Standard Functions
    Workcode, SMS, DST, Webserver, Scheduled-bell, Self-Service Query, Automatic Status
    Switch,
    Photo ID, T9 Input, Anti-passback, Camera, Built-in Battery
    Access Control Interface 3rd Party Electric Lock, Door Sensor, Exit Button, Alarm, Door Bell
    Wiegand Sigal Input & Output
    Optional Functions ID/Mifare/HID, External Printer, ADMS, Wi-Fi, 3G, Multi Verification Mode
    Software ZKTime.Net 3.0/BioTime 8.0
    Power Supply DC 12V 3A
    Verification Speed ≤1 Sec.
    Operating Temp. 0°C – 45°C
    Operating Humidity 20% – 80%
    Dimension 225.2×166.0×46.3mm (Length×Width×Thickness)
    Gross Weight 1.94 kg
