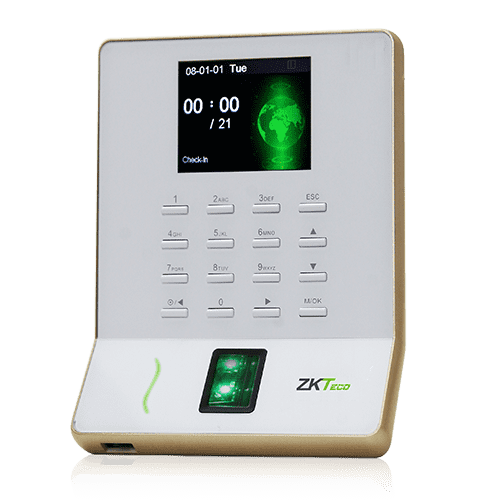

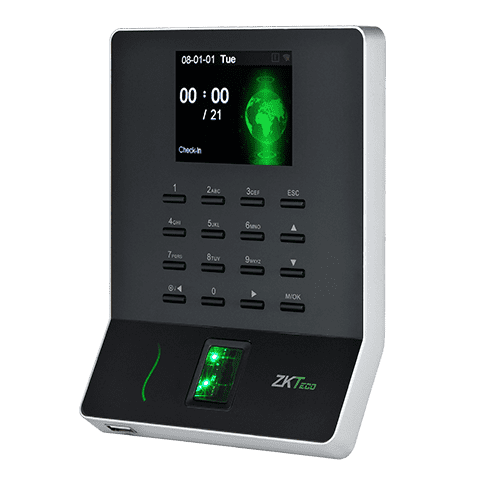

Wl 20 Fingerprint Device


WL20 is a time attendance and fingerprint terminal with Wi-Fi module. Through the Wi-Fi function, the user does not need an Ethernet cable, it supports hotspot mode and allows mobile apps to connect, check in / out and log download directly. Connected to the new ZK fingerprint reader, the process remains stable with a strong light source and high accuracy in checking wet and rough fingers. It also has a stylish design, and a new phase of attendance time will begin.



Fingerprint Capacity 1000 / 1500 (without SSR)
Finger Algorithm ZKFinger VX10.0
Record Capacity 50,000
Display 2.8-inch TFT Screen
Communication Wi-Fi , USB-Host
Standard Functions SSR, DST, Self-Service Query, Automatic Status Switch, T9 Input 9 digit user ID
Optional Functions TA Assistant APP, Time Cube Cloud Solution
Power Supply DC 5V 0.8A
Operating Temp 0 °C – 45 °C
Operating Humidity 20%-80%
Dimension 168 x 125 x 37.5 mm
