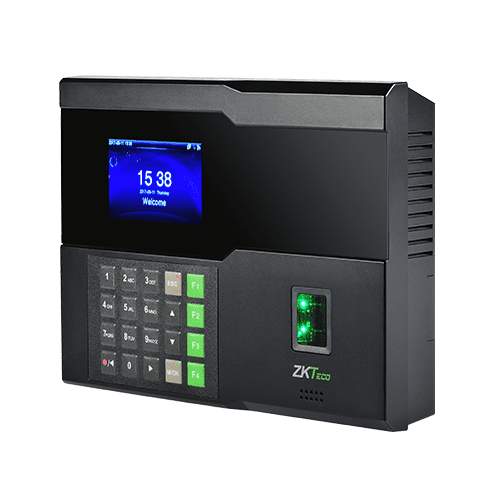

IN05 & IN05-A Fingerprint Device

IN05 & IN05-A Fingerprint Device

N05 is a fingerprint identification time & attendance and access control terminal, which can connectwith third party electric lock, door sensor and exit button etc. Communicating via Wi-Fi, TCP/IP, 3G and USB host, it ensures a smooth connection and data transfer. It’s associated with ZK new fingerprint reader, the operation remains stable under strong light source and high preciseness of verification of wet and rough fingers. Amazing verification speed and intuitive Operation process make it popular. It will match your slap-up office perfectly.


Features

  1. 1 channel auxiliary input for smoke detector connection.
  2. Build in PoE.
  3. Multiple communicate mode, Wi-Fi, TCP/IP, 3G, USB host.
  4. Advance access function including Lock connection, alarm, Wiegand input/output.
  5. Build in battery, upto 4 hours.
  6. Stable operation under strong light source

    Parameter

    ProductIN05IN05-A
    MainBiometricFingerprint
    RF Optional125kHz EM / 13.56MHz MF
    CapacityMax User(1:N)10,000
    Max Fingerprint (1:N)3,000 standard / 10,000 Optional
    Max Record100,000
    InterfaceTCP/IP10/100 M
    PoE Optional802.3 at 28W
    Wi-Fi802.11 B/G/N
    3G OptionalWCDMA
    USBUSB 2.0 (Host)
    RS2321 port for external printer
    RS4851 port for FP reader
    Relay2 relays
    Wiegand1ch In & Out
    Input1 Input
    HardwareLCD3.0” Color LCD
    Sound24-bit
    Operating Temp.0 °C – 45 °C
    Operating Humidity20% ~ 80%
    PowerDC 12V 1.5ADC 12V 3A
    Dimensions(W x H x D mm)213*155*107.81mm
    CertificatesCE, FCC, RoHS
    FunctionStandardAutomatic Status Switch, Self-Service Query, DST, T9 Input, 9 Digit
    User ID, Scheduled Bell, Photo ID, Lock, sensor, Exit button
    OptionalID / MF, ADMS
    CompatibilityZKTime.net 3.0, BioTime 8.0, ZKAccess 3.5
