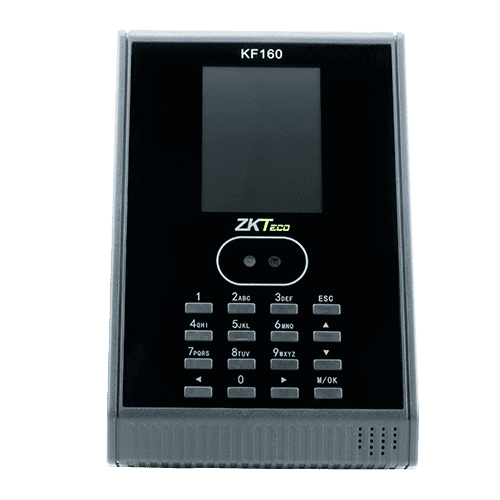

KF160 Facial Recognition Device


KF160 is an innovative terminal for management employee attendance and basic access control functions. User verification is performed using face recognition (standard) or ID/MF cards (optional). The verification process takes less than 1 second. The user-friendly UI provides customers with a quick and easy experience. Data transfer can be done through your TCP / IP or USB to transfer data manually interface.



  1. 1,500 Faces, 2,000 Cards and 100,000 Records.
  2. Intuitive and stunning UI design.
  3. Multi-languages.
  4. Communication: TCP/IP, USB-Host,Wi-Fi (Optional).


    Face Capacity 1,500
    Card Capacity 2,000
    Record Capacity 100,000
    Display 2.8-inch TFT Screen
    Communication TCP/IP, USB-Host, Wi-Fi (Optional)
    Standard Functions SMS, DST, Schedule-bell, Self-Service Query, Automatic Status Switch, T9 Input, Photo ID, Camera, Multi-verification, RS232 Printer (Optional Cable)
    Interface fot Access Control 3rd Party Electric Lock, Exit Button, Alarm
    Optional Functions ID / MF Card, Work Code, ADMS
    Power Supply DC 12V 1.5A
    Verification Speed ≤1 Sec.
    Operating Temp. 0°c – 45°c
    Operating Humidity 20% – 80%
    Dimension 109×165.5×33.2 mm (Length*Width*Thickness)
    Net Weight 264g
